High-Power Broadcast

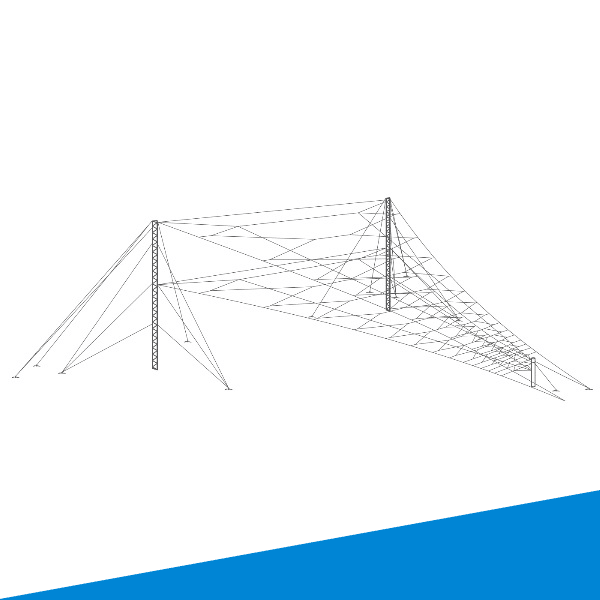

Model 515/516, 527 and 615

  • High power — able to handle 1 megawatt peak power (250 kW carrier power)
  • High power gain (over 14 dB)
  • Wide frequency bandwidth
  • Low VSWR — 2.0:1 max.

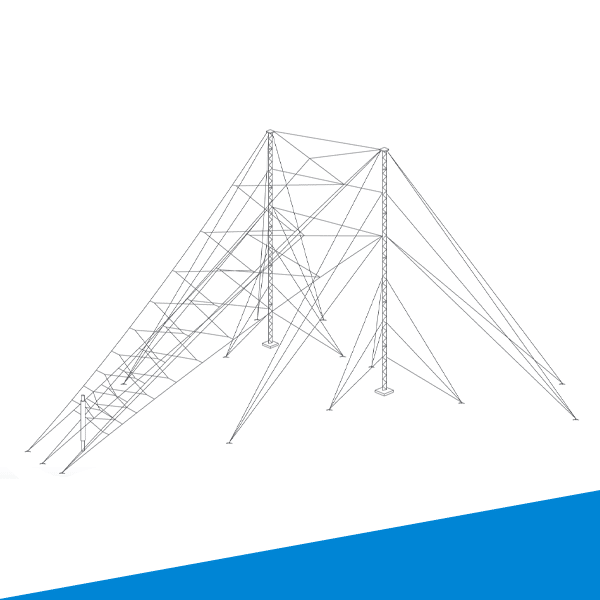

The Model 515 and 516 high-power log-periodic antennas are well suited for this application.

Highly reliable communications on long-range circuits require antennas with high power gain at low take-off angles.

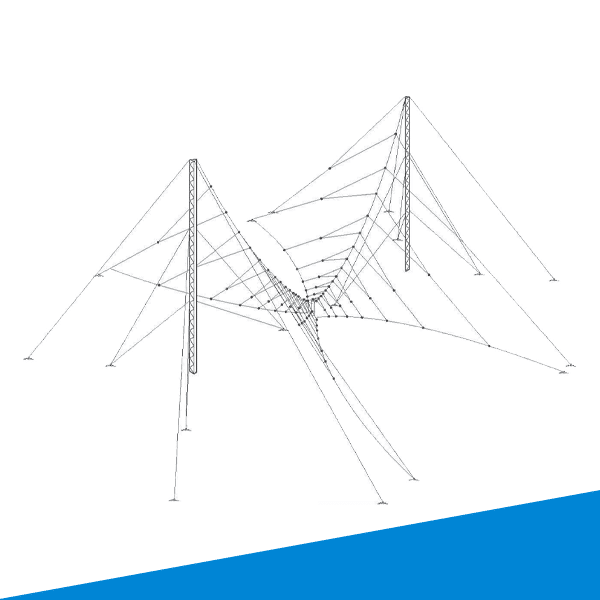

The Model 615 exhibits all the features of this ideal short-range broadcast antenna.
