Model 720A

Make fast and accurate signal measurements for critical safety - related applications

  • Field-proven spectrum monitoring and geolocation solutions used by over 50 regulatory authorities worldwide
  • Simultaneous radio direction finding on more than 40 user-defined frequency channels
  • Exceptional direction finding speed and measurement accuracy
  • 30 to 1,000 MHz coverage with the TCI Model 641 or 645 antenna
  • Optional HF monitoring coverage from 9 kHz to 30 MHz
  • Instantaneous bandwidth of 10 MHz
  • Application Programming Interface (API) for control and output of the measured lines of bearing to vessel traffic service (VTS) management systems
  • Client-server architecture with full networking capability over TCP/IP
  • SCORPIO client software for local or networked setup, control and display.
  • Selectable measurement bandwidths include 6.25 kHz, 8.33 kHz, 12.5 kHz, 25 kHz, 50 kHz and 100 kHz
  • Compact antenna and spectrum processor units
  • Automated emergency and high-priority channel monitoring and interference detection with alarm capability
  • Built-in self-test and calibration
  • Meets or exceeds ITU recommendations
  • Interoperable with all TCI 700 series spectrum monitoring systems

Product Description

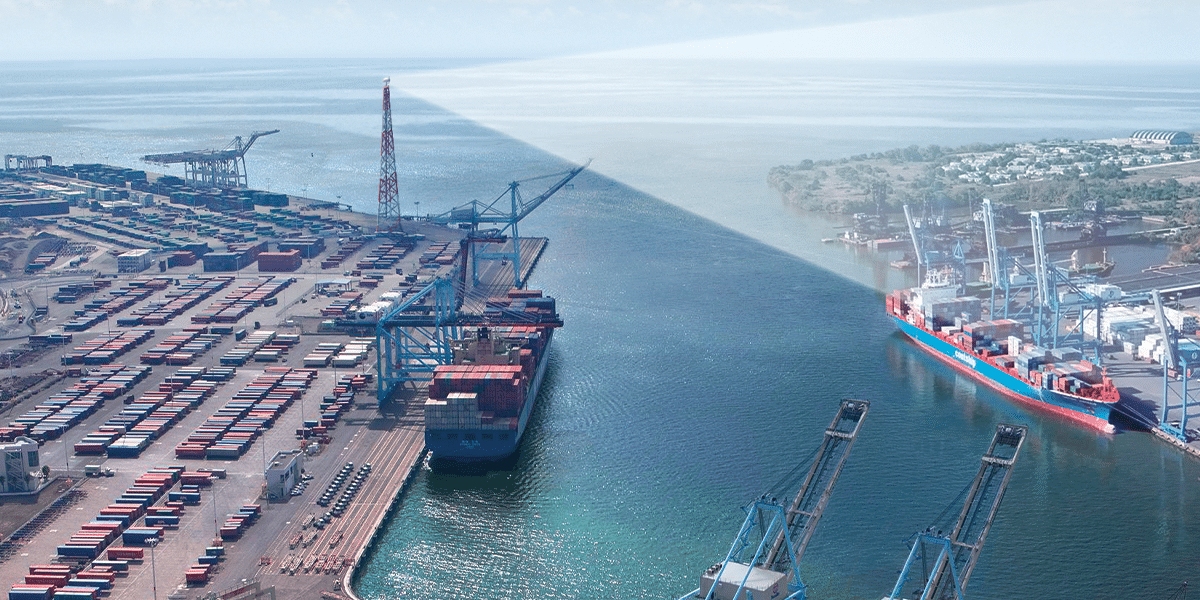

The TCI Model 720A is a high-performance radio direction finder that can be integrated into maritime vessel traffic systems (VTS) or interference detection systems for search and rescue operations and radio band protection applications. Model 720A systems can also be used individually or networked together on land or on a vessel to identify the LOB or source location of distress signals or other RF transmissions. A compact member of TCI’s 700 series of field-proven Spectrum Monitoring Systems (SMS), the 720A provides an accurate, real-time solution for unattended monitoring and instantaneous identification of the source of radio transmissions for applications such as: Vessel tracking systems (VTS), Port management, Maritime border protection, Search and rescue (SAR) for aeronautical and maritime services (121.5 MHz, 156.8 MHz, optional 243.0 MHz & 406.25 MHz), Interference detection from other radio services, Unauthorized usage, Homeland Security, Border protection, Advanced real-time spectrum monitoring.


The 720A exclusively offers users a multi-channel architecture to provide fast and accurate signal measurements for critical safety-related applications. The system consists of a spectrum processor, computer/monitor, TCI’s SCORPIO client-server software and a choice of VHF/UHF direction finding (DF) antennas. The 720A achieves high-accuracy DF performance by using its spectrum processor for simultaneous DSP analysis of wideband receivers connected to an external, multi-element DF antenna array. Each processor channel is composed of a fully synthesized, high dynamic range receiver, high-speed digitizer, and custom digital signal processor. The digital processing provides a wide selection of measurement bandwidths, including 6.25 kHz, 8.33 kHz, 12.5 kHz, 25 kHz, 50 kHz and 100 kHz. This allows the system to be tailored to current and future channel-spacing requirements and to simultaneously measure and analyze more than 40 frequency band channels.
